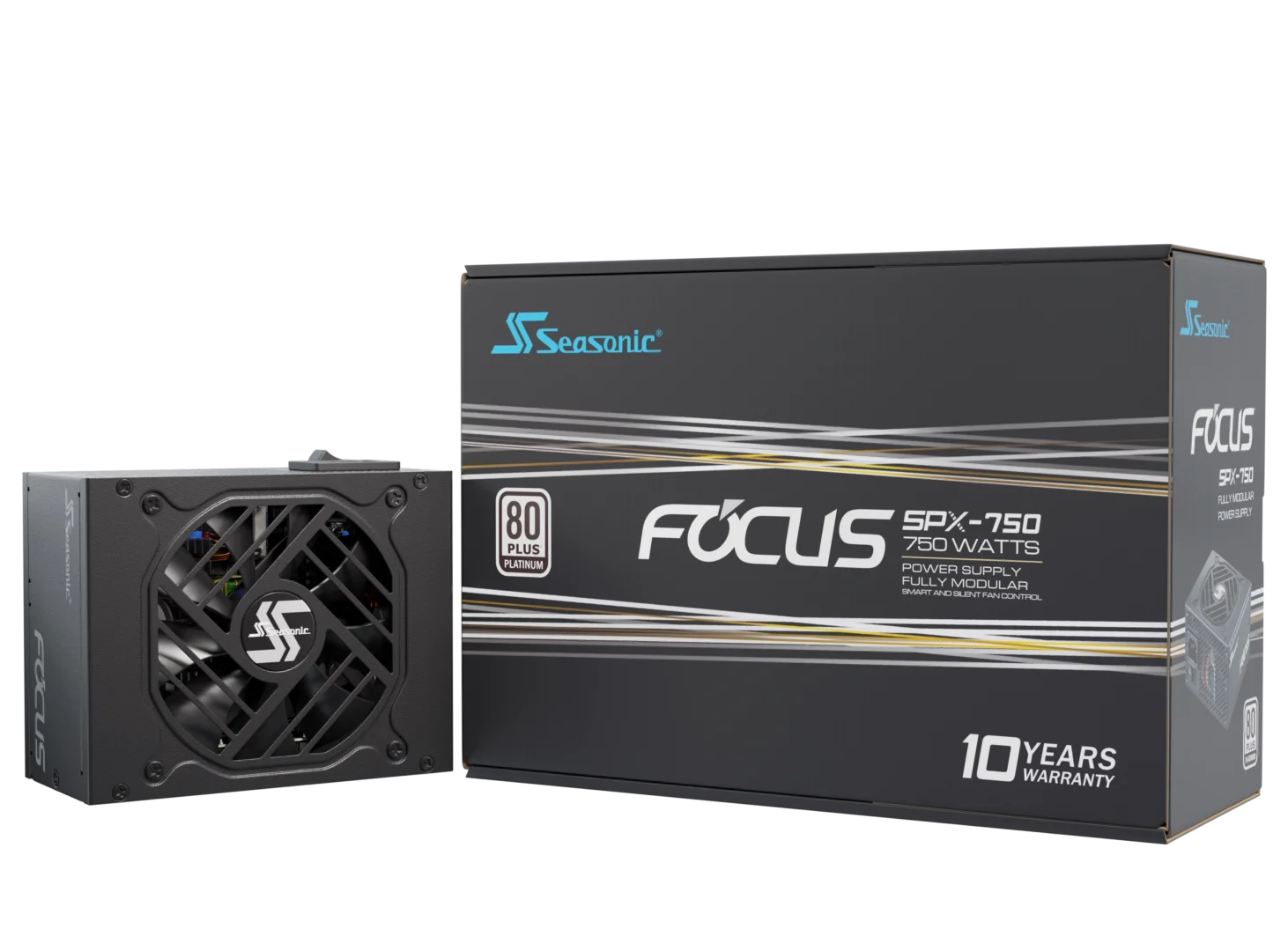

SEASONIC FOCUS SPX- 750 WATTS POWER SUPPLY FULLY MODULAR 80+ PLATINUM

Description

Specifications

750 W

650 W

Technical Specifications
80PLUS^®		Platinum
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		SFX
Dimensions		125 × 100 × 63.5 mm
Fan Information	Fan Size	92 mm
	Fan Control	Premium Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % – 65 % RH
Cable Information	Modularity	Fully Modular
Electrical Features	Operating Temperature	0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	100 V – 240 V
	10 – 5 A
	50 Hz – 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	62 A	0.3 A	3 A
		100 W		744 W	3.6 W	15 W
	Total continuous power	750 W

Cables

750 W

650 W

350 mm

MB (24/20 pins)

1 connector

1 cable

400 mm

CPU (8/4 pins)

1 connector

2 cables

500 mm

PCIe (8/6 pins)

2 connectors

1 cable

500 mm

PCIe (8/6 pins)

1 connector

2 cables

600 mm

SATA

3 connectors

2 cables

700 mm

Molex

3 connectors

1 cable

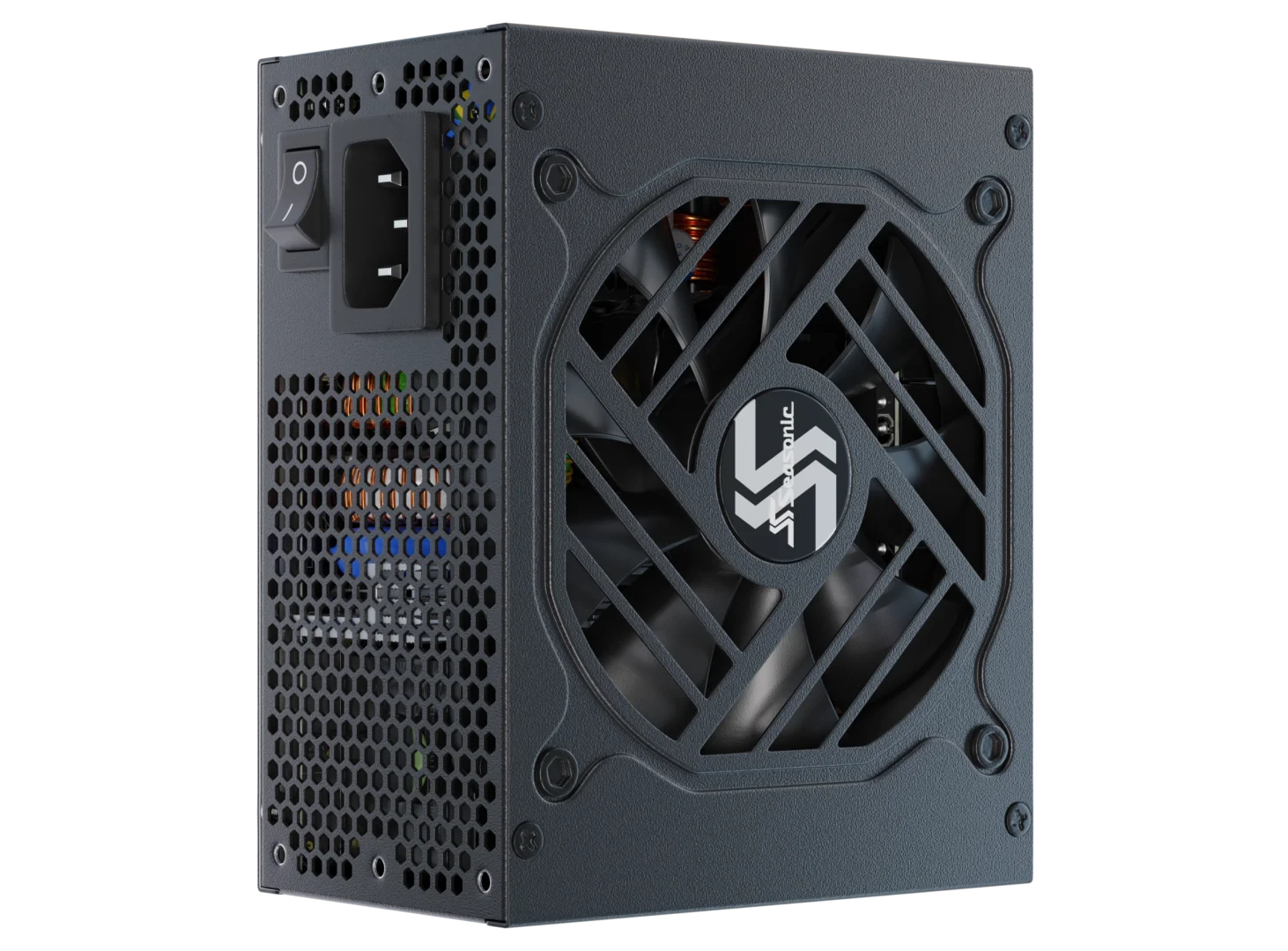

Standard SFX Size

The 2021 version of the FOCUS SPX measures at 125 and 100 mm in length and width. This super-compact size allows it to fit into various sized computer cases.

Hybrid Silent Fan Control – Fanless up to about 30 % load

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal balance between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

Reduced noise without increase in temperature
Extended fan life due to the reduced number of fan rotations
Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode

Fluid Dynamic Fan Bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
