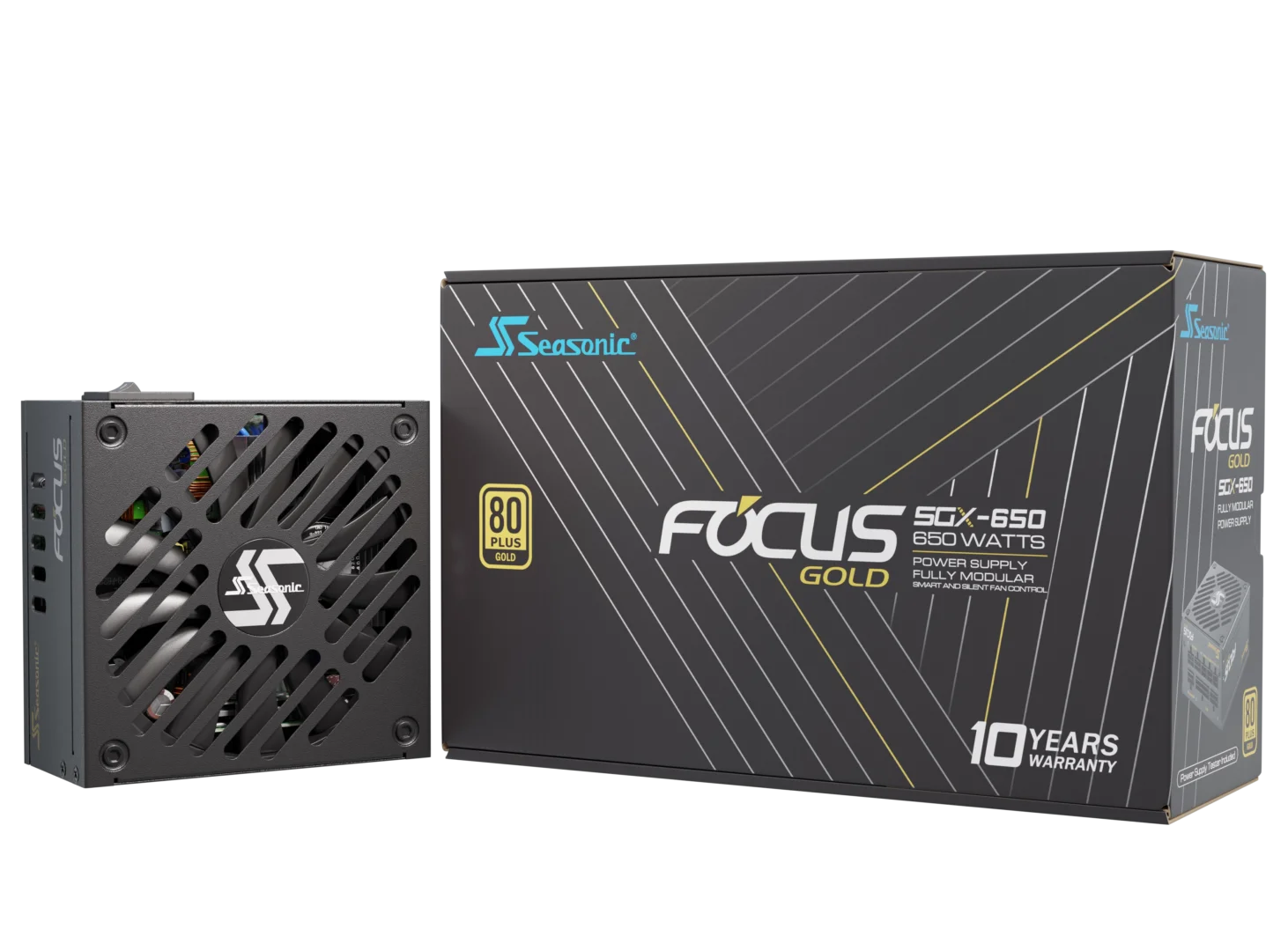

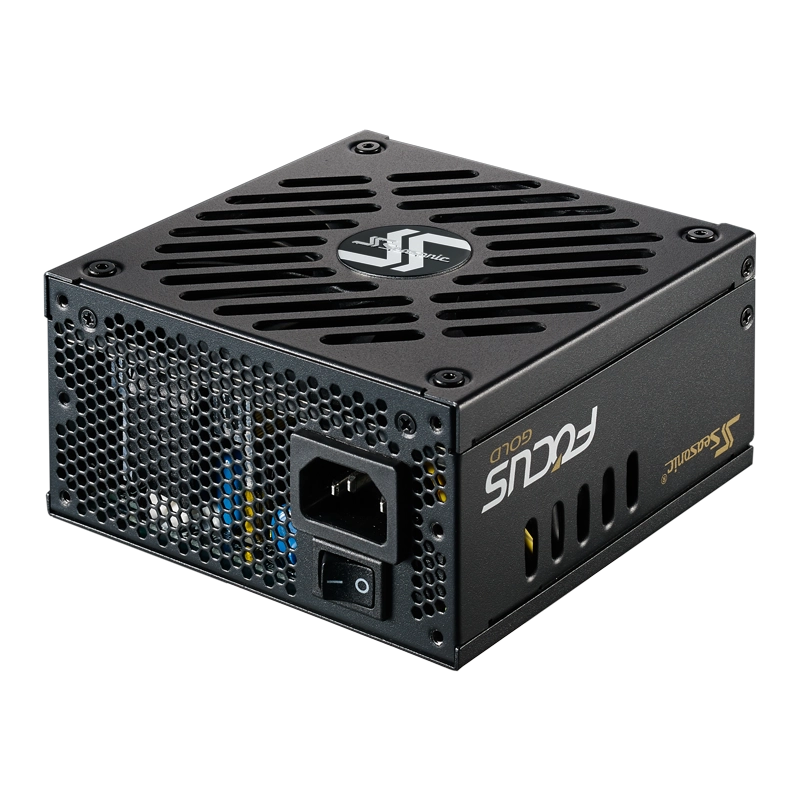

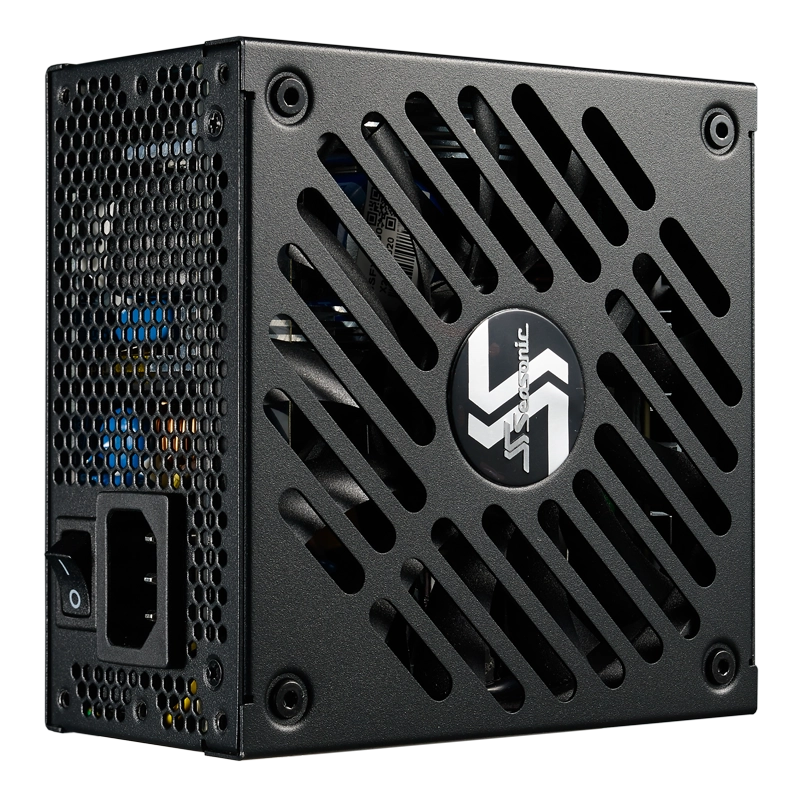

SEASONIC FOCUS GOLDSGX- 650 WATTS POWER SUPPLY FULLY MODULAR 80+ GOLD

Description

Specifications

650 W

500 W

450 W

Technical Specifications
80PLUS^®		Gold
Cybenetics Efficiency Level		Gold
Cybenetics Noise Level		Standard+
Form Factor		SFX
Dimensions		125 × 125 × 63.5 mm
Fan Information	Fan Size	120 mm
	Fan Control	Premium Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % – 65 % RH
Cable Information	Modularity	Fully Modular
Electrical Features	Operating Temperature	0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	100 V – 240 V
	9 – 4.5 A
	50 Hz – 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	54 A	0.3 A	3 A
		100 W		648 W	3.6 W	15 W
	Total continuous power	650 W

Cables

650 W

500 W

450 W

350 mm

MB (24/20 pins)

1 connector

1 cable

400 mm

CPU (8/4 pins)

1 connector

1 cable

500 mm

PCIe (8/6 pins)

2 connectors

2 cables

600 mm

SATA

3 connectors

2 cables

700 mm

Molex

3 connectors

1 cable

FOCUS SGX

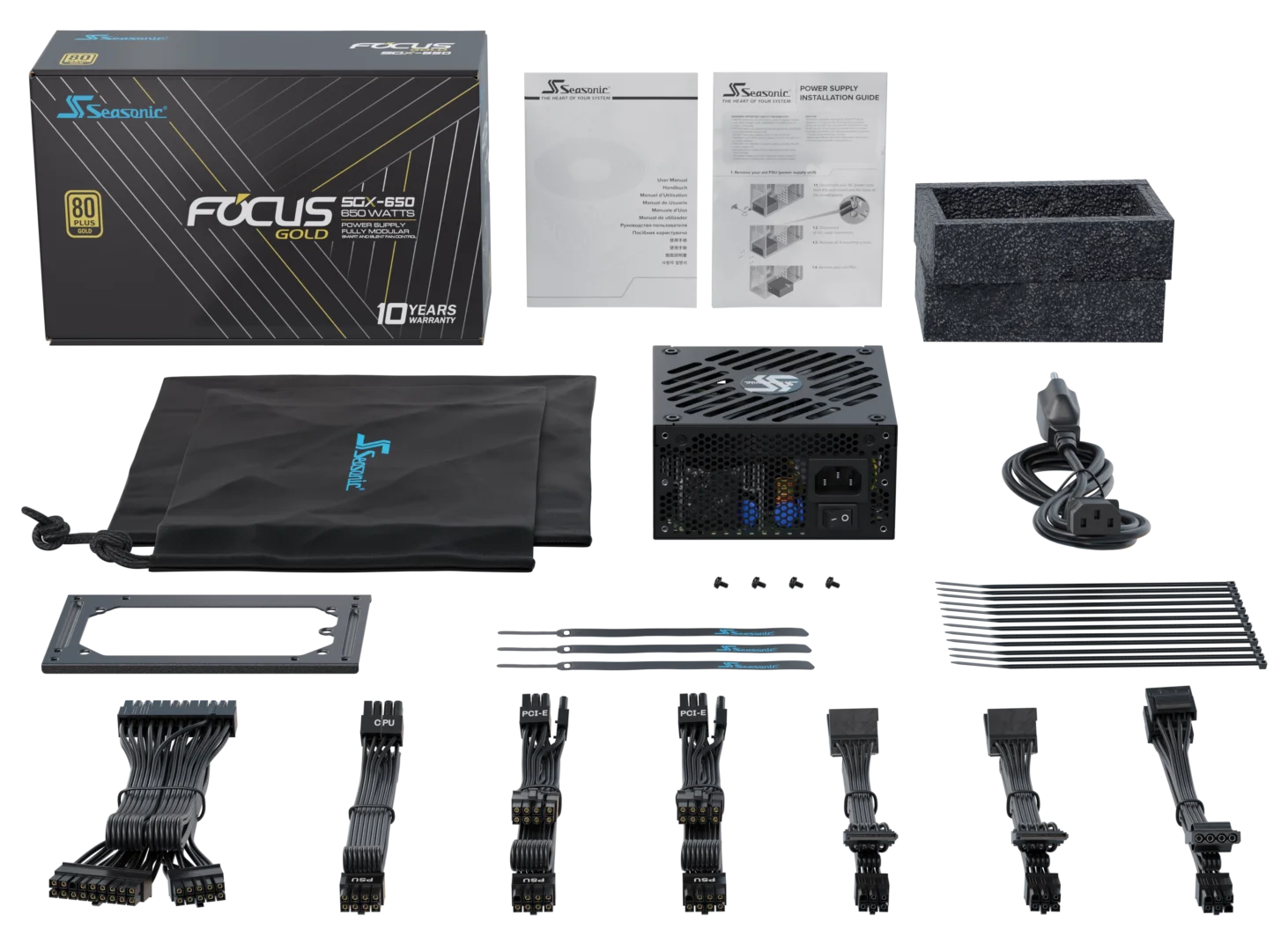

The long-awaited new line of Seasonic’s FOCUS SGX is versatile in its application, and powerful with a small footprint. The FOCUS SGX is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.

The FOCUS SGX Series achieves 80 PLUS^® Gold certification with its 90 % efficiency at 50 % system load.
80 PLUS^® Gold Certified
Warranty
10 Years
Cabling
Fully Modular
125 mm (L) x 125 mm (W) x 63.5 mm (H)
Dimensions
SFX 12 V / ATX 12 V

Cybenetics – FOCUS SGX-650

Cybenetics – FOCUS SGX-500
