Description
- CPULGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU - ChipsetIntel® B860 Express Chipset
- MemorySupport for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) - Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
– 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 2.1 version.– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 2.1 version.– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time - AudioRealtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. - LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Wireless Communication moduleIntel® Wi-Fi 6E AX211 (PCB rev. 1.0/2.0)
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1)
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.) - Expansion SlotsCPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - Storage InterfaceCPU:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2Q_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices - USBCPU:
– 1 x USB4® USB Type-C® port on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
– 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
– 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers) - Internal I/O Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
1 x Q-Flash Plus button
1 x reset jumper

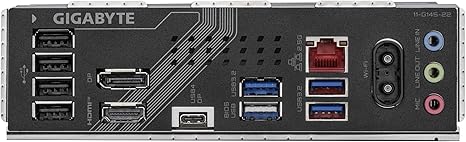

1 x Clear CMOS jumper - Back Panel Connectors1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB4® USB Type-C® port (DisplayPort (Note))
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks(Note) Actual support may vary by CPU.
- I/O ControlleriTE® I/O Controller Chip
- H/W MonitoringVoltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. - BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 - Unique FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup - Bundled SoftwareNorton® Internet Security (OEM version)
LAN bandwidth management software - Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
INFINITE-MEMORY
D5 BIONIC CORSA
VRM
THERMAL
DIY-FRIENDLY
CONNECTIVITY
ULTRA DURABLE
SOFTWARE

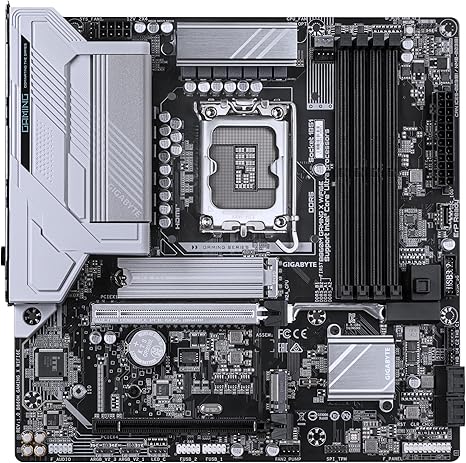

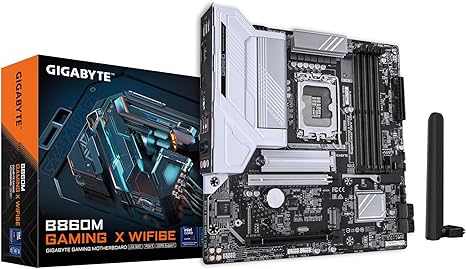

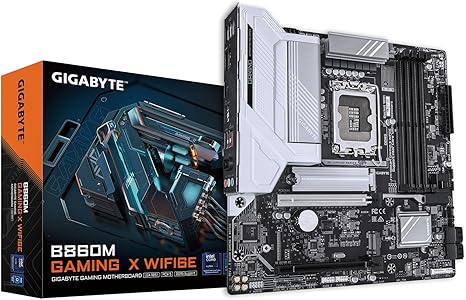

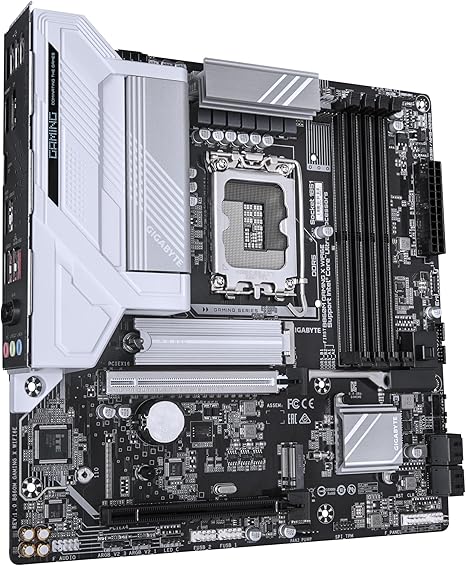

B860M GAMING X WIFI6E
OVERVIEWPerformanceThermalConnectivityDIY FriendlyIntel® Core Ultra processors (Series 2) Support
8+1+2 Hybrid Digital VRM Design
- 6-Layer PCB
- 2oz PCB
UD Power Connector
- 24 pin ATX Power Connector
- 8 pin CPU with UD Solid Pin
4 x DIMMs, Dual Channel DDR5
2 x M.2 Slots
- 1 x PCIe 5.0 M.2 Slot
- 1 x PCIe 4.0 M.2 Slot
Full-length PCIe slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot
- 1 x PCIe 4.0 x4 slot
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Infinite Memory PerformanceD5 Bionic Corsa Technology.
Steady PowerKeeps your computing smooth.
D5 Bionic CorsaAdvanced AI-enhanced overclocking tech. for DDR5.
Comprehensive ThermalKeep your system cool and efficient.
Hassle-free AssemblyUltimate DIY-Friendly experience.
Tailored ComputingMore superb, user-friendly, customized BIOS & software.
Born from Ultra Durable™Built for longevity and reliability.
MemoryInfinite Memory PerformanceGaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Learn More About BIOS Features
* Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.
DDR5 Overclocking Up to
9200 MT/sD5 Bionic CorsaAI Overclocking
For peak performanceAORUS AI SnatchAuto-Overclocking Software by AI model
* Coming soonAI SNATCH EngineAdvanced AI Overclocking Model
AI Design
For MB signal enhancementAI-Driven PCB DesignRedefining PCB Design with AI
HyperTune BIOSAI-Driven Advanced BIOS Optimization Technology
Sturdy VRM DesignSteady PowerBetter Play GAMING Series, steady power keeps your gaming smooth.
Hybrid Digital VRM DesignDelivers consistent, high-powered performance to elevate your overclocking to the next level.
8VCORE Phases DrMOS 60AUnlock the full power of your multi-core CPU for unmatched performance.
1VCCGT Phase DrMOS 40AOptimized for integrated GPU performance and memory management within the CPU.
2VCCSA Phases DrMOS 60ADeliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
CoolingComprehensive ThermalGAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Level Up Epic VRM heatsinks for non-stop gaming4XMassive cooling surfaceExceptional heat dissipation
M.2 Thermal GuardThe M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
RL-ILM designReduce up to4°CSmart Fan 6Cool. Quiet. Customized.
Easy & FriendlyHassle-free AssemblyOur cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
WIFI EZ-PlugThe WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
Fast-Access ControlsHandy, Revert, Refresh
EZ Debug Zone Q-FLASH Auto Scan
More Quick Control Elements
ConnectivityFuture ConnectivityExperience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
All-round ConnectivityNative 40 Gbps USB4
Wi-Fi 6E
2.5 GbE LAN
More Connectivity infoHi-Fi AudioHigh-End Audio Capacitors
Audio Noise Guard
More Connectivity infoUltra Durable™Born from Ultra Durable™Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.
PCIe UD SlotGIGABYTE’s one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
1.7Xstronger shearing test
3.2Xstronger retention force test
UD Power ConnectorOur innovative UD Power Connector design enhances power conductivity and thermal dissipation.
Solid PinsDelivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
Tailored ComputingCollaborative Excellence in ComputingGIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.
UC BIOSRestructured with user-centered and intuitive performance adjustment mechanisms.
Multi-ThemeMultiple BIOS skin with newly exclusive grayscale mode
AIO Fan ControlAdjust AIO fan speed in the BIOS
AI PerfDriveLearn moreGIGABYTE Control CenterA unified software platform encompassing multiple GIGABYTE product.
RGB FusionPersonalize the RGB illumination on your motherboard and connected peripherals.
Learn moreHWiNFOExclusive Partnership
Power MonitorAORUS & HWiNFO Co-branded OSDLearn moreKey Features- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid Digital 8+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
UC BIOS
GIGABYTE Control Center
HWiNFO
