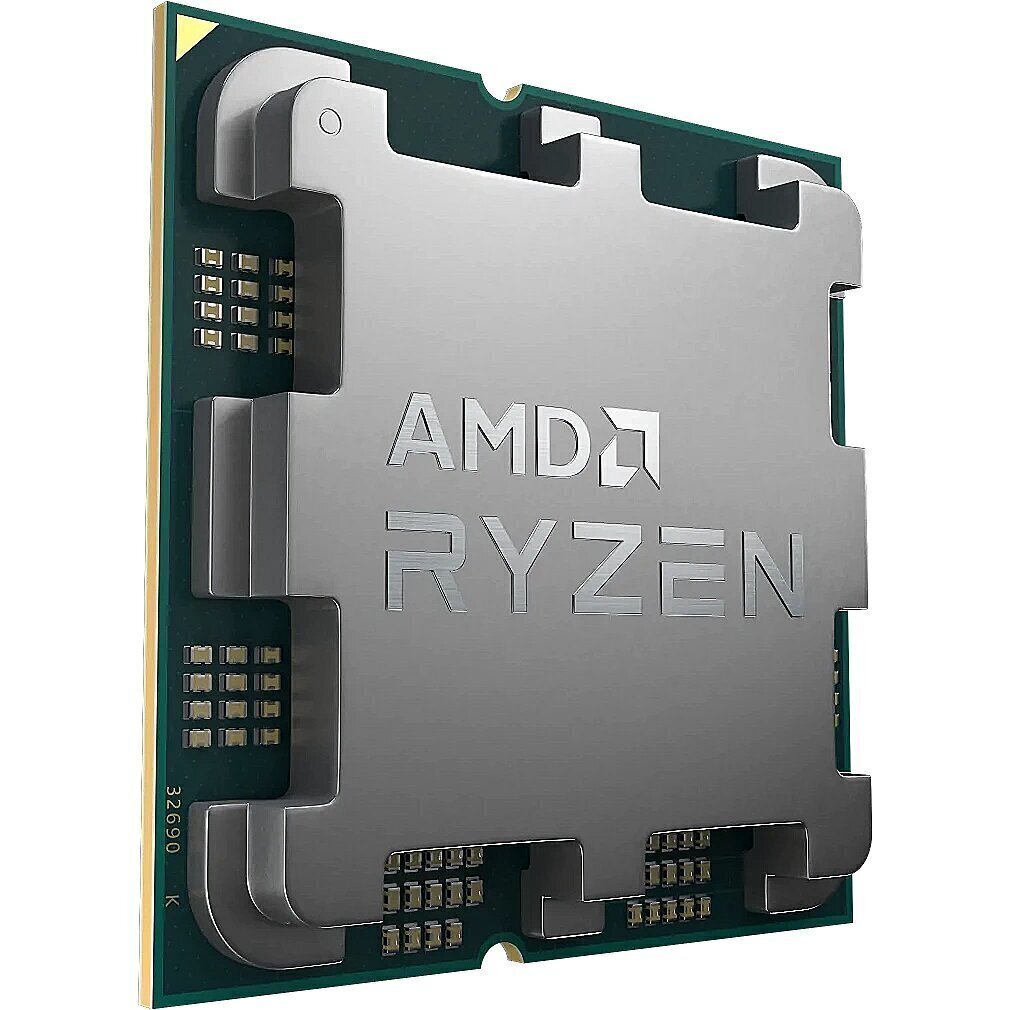

AMD Ryzen™ 7 7800X3D TRAY (8 cores 16 threads, Up to 5 GHz)

20,550.00

Out of stock

Category

Description

Platform — Desktop
Market Segment — Enthusiast Desktop
Product Family — AMD Ryzen™ Processors
Product Line — AMD Ryzen™ 7 Processors
AMD PRO Technologies — No
Consumer Use — Yes
Regional Availability — Global
Former Codename — “Raphael AM5”
Architecture — “Zen 4”
# of CPU Cores — 8
Multithreading (SMT) — Yes
# of Threads — 16
Max. Boost Clock — Up to 5.0GHz
Base Clock — 4.2GHz
L1 Cache — 512KB
L2 Cache — 8MB
L3 Cache — 96MB
Default TDP — 120W
Processor Technology for CPU Cores — TSMC 5nm FinFET
Processor Technology for I/O Die — TSMC 6nm FinFET
CPU Compute Die (CCD) Size — 71mm²
I/O Die (IOD) Size — 122mm²
Package Die Count — 2
AMD EXPO™ Memory Overclocking Technology — Yes
Precision Boost Overdrive — Yes
Curve Optimizer Voltage Offsets — Yes
AMD Ryzen™ Master Support — Yes
CPU Socket — AM5
Supporting Chipsets
– A620
– X670E
– X670
– B650E
– B650
CPU Boost Technology — Precision Boost 2
Instruction Set — x86-64
Supported Extensions
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) — Not included
Recommended Cooler — Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) — 89°C
Launch Date — 4/6/2023
*OS Support
– Windows 11 – 64-Bit Edition
– Windows 10 – 64-Bit Edition
– RHEL x86 64-Bit
– Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
USB Type-C® Support — Yes
Native USB 3.2 Gen 2 (10Gbps) Ports — 4
Native USB 3.2 Gen 1 (5Gbps) Ports — 0
Native USB 2.0 (480Mbps) Ports — 1
Native SATA Ports — 0
PCI Express® Version — PCIe® 5.0
Native PCIe® Lanes (Total/Usable) — 28 / 24
Additional Usable PCIe Lanes from Motherboard
AMD X670E — 12x Gen4
AMD X670 — 12x Gen4
AMD B650E — 8x Gen4
AMD B650 — 8x Gen4
NVMe Support — Boot, RAID0, RAID1, RAID10
System Memory Type — DDR5
Memory Channels — 2
Max. Memory — 128GB
System Memory Subtype — UDIMM
Max Memory Speed
2x1R — DDR5-5200
2x2R — DDR5-5200
4x1R — DDR5-3600
4x2R — DDR5-3600
ECC Support — Yes (Requires mobo support)
Integrated Graphics — Yes
Graphics Model — AMD Radeon™ Graphics
Graphics Core Count — 2
Graphics Frequency — 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode — Yes
Product ID Boxed — 100-100000910WOF
Product ID Tray — 100-000000910
Supported Technologies
– AMD EXPO™ Technology
– AMD Ryzen™ Technologies
