Description

• Clock: GPU / Memory
  Boost Clock: Up to 2491 MHz / 14 Gbps
  Game Clock: Up to 2044 MHz / 14 Gbps
  Base Clock: 1626 MHz / 14 Gbps
• Key Specification
  7nm AMD Radeon™ RX 6600
  8GB GDDR6
  AMD RDNA™ 2 Architecture
  DirectX 12 Ultimate
  PCI^® Express4.0 Support
  1 x 8-pin Power Connector
  3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR
• Key Features

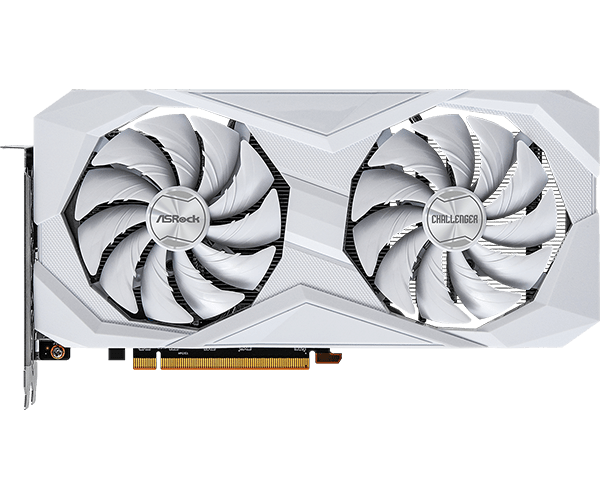

  Dual Fan Design
  Striped Axial Fan
  Ultra-fit Heatpipe
  Stylish Metal Backplate
  0dB Silent Cooling
  Super Alloy Graphics Card

  Dual Fan Design

  Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.

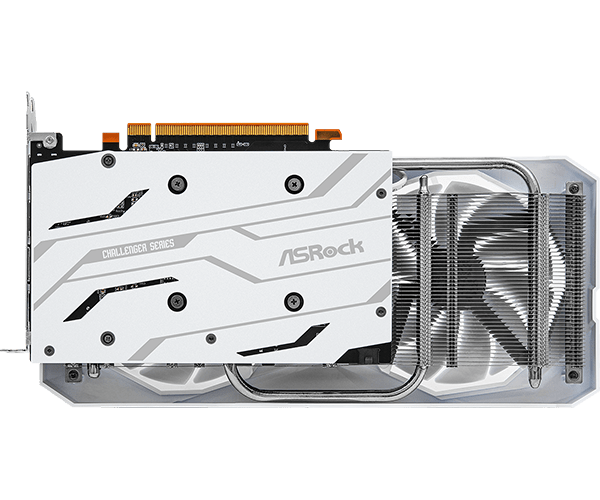

  Stylish Metal Backplate

  Solid, Fancy, Cool.

  Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.



  Striped Axial Fan

  Designed For Enhanced Airflow.

  ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.





  0dB Silent Cooling

  Spin For Cooling, Stop For Silence.

  The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.



  Ultra-fit Heatpipe

  Consolidated to Maximize the Contact.

  The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.



  Copper Base

  Maximize GPU Contact Area.

  With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.



  Nano Thermal Paste

  Perfect Thermal Teamwork.

  Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.



  Premium Thermal Pad

  Better Heat Transfer.

  The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.



  Precise Screw Torque

  Optimized Mounting Pressure.

  ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.





  Dr. MOS



  Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

  Premium 90A Power Choke



  Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

  Matte Black PCB



  A new mysterious matte black and copper color scheme to match the prestigious components on ASRock’s high-end graphics card.

  High Density Glass Fabric PCB



  High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

  ASRock Tweak 2.0

  Pro and Easy-to-Use Tuning Utility.

  Provides the smart fan speed control and instant performance tweaking.



  8K Resolution Support

  Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.



  PCI^® Express 4.0 Support

  This graphics card features PCI^® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI^® Express 3.0. Get ready for the next generation of PC gaming.



  AMD Eyefinity Technology

  AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.




  Introducing AMD Radeon™ RX 6600 series graphics cards, featuring the breakthrough AMD RDNA™ 2 architecture. Engineered to deliver an incredible 1080p gaming experience, the AMD Radeon™ RX 6600 series powers the next generation of gaming with vivid visuals and elevated experiences.

  Powerhouse Performance

  AMD Radeon™ RX 6600 series graphics cards deliver serious 1080p gaming and ultra-high frame rates. Get up to 32 high-performance compute units, groundbreaking AMD Infinity Cache, and up to 8GB of dedicated GDDR6 memory. Experience the next gen of gaming performance with AMD Smart Access Memory technology1 when you pair an AMD Radeon™ RX 6600 series graphics card with an AMD Ryzen™ 5000 Series desktop processor.



  Vivid Visuals

  With immersive gaming technologies and support for DirectX^® 12 Ultimate, AMD Radeon™ RX 6600 series graphics cards draw you into the action. Experience gaming with realistic lighting, shadows, and reflections along with rich detail, thanks to DirectX^® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA™ 2 architecture.



  AMD Smart Access Memory Technology

  All AMD Performance. Built To Game.

  Combine an AMD Ryzen 5000 Series processor or a select AMD Ryzen 3000 Series processor with an AMD Radeon RX 6600 series graphics card to boost your system’s performance, thanks to AMD Smart Access Memory technology¹. AMD Smart Access Memory enables AMD Ryzen processors to harness the full potential of the graphics card memory. Enjoy increased performance with all-AMD in your system for the ultimate gaming advantage.



  One Gaming DNA for PCs and Consoles

  AMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi-gaming platforms, like no other graphics architecture before.



  GET A BOOST IN FRAMES
  FOR YOUR GAMES

  AMD FidelityFX Super Resolution² (FSR) boosts your frame rates 2.4X on average in FSR supported games³ with high-quality, high-resolution gaming experiences delivered by AMD Radeon RX 6000 Series graphics cards. Optimize your gaming experience between four presets, ranging from best visual fidelity to maximum performance.



  AMD RADEON PC GAMING IS WINDOWS 11 READY

  Windows^® 11 is created for the ultimate PC gaming, featuring superior graphics, amazing speed, and an incredible selection of games. Windows^® 11 includes gaming features like DirectX^® 12 Ultimate, DirectStorage, and Auto HDR.




  1. Smart Access Memory technology enablement requires an AMD Radeon RX 5000 or RX 6000 series GPU, AMD Ryzen 5000 or 3000 series CPU (excluding the Ryzen 5 3400G and Ryzen 3 3200G) and a 500 series motherboard with the latest BIOS update. BIOS requires support for AGESA 1.1.0.0 or higher. Download latest BIOS from vendor website. For additional information and system requirements, see https://www.amd.com/en/technologies/smart-access-memory. GD-178
  2. AMD FidelityFX Super Resolution is available on select games and requires developer integration. See https://www.amd.com/en/technologies/radeon-software-fidelityfx-super-resolution for a list of supported games. AMD FidelityFX Super Resolution is “game dependent” and is supported on the following AMD products: AMD Radeon™ RX 6000, RX 5000, RX 500, RX Vega Series graphics cards & all AMD Ryzen™ Processors with Radeon™ Graphics, as long as the minimum requirements of the game are met. AMD does not provide technical or warranty support for AMD FidelityFX Super Resolution enablement on other vendor’s graphics cards. GD-187.
  3. Testing by AMD Performance Labs as of June 11, 2021, on the AMD Radeon™ 6900 XT, AMD Radeon™ 6800 XT, and AMD Radeon™ 6700 XT graphics cards with pre-release AMD Radeon™ Software 21.6.1 RC Prime 9 (21.20-210518a-367616E) driver with AMD Smart Access Memory enabled, on a test system comprising of an AMD Ryzen™ 9 5900X, 16GB DDR4-3200 RAM, ASRock X570 Taichi motherboard with BIOS version P3.61 at default settings, and Windows^® 10 Pro May 2020 Update (19041.508). Benchmark tests: Anno 1800, DX12, 3840 x 2160, Ultra Hight preset, no raytracing. Evil Genius 2, Vulkan, 3840 x 2160, Ultra preset, no raytracing. Godfall, DX12, 3840 x 2160, Epic preset, Raytracing ON. Kingshunt, DX12, 3840 x 2160, Ultra preset, no raytracing. The Riftbreaker, DX12, 3840 x 2160, Ultra preset, Raytracing ON. Terminator: Resistance, DX11, 3840 x 2160, Epic preset, no raytracing. Game 7, DX12, 3840 x 2160, High preset, no raytracing. Performance may vary and is dependent on the FSR Quality Mode selected. FSR requires developer integration and is available in select games only. RS-365.
